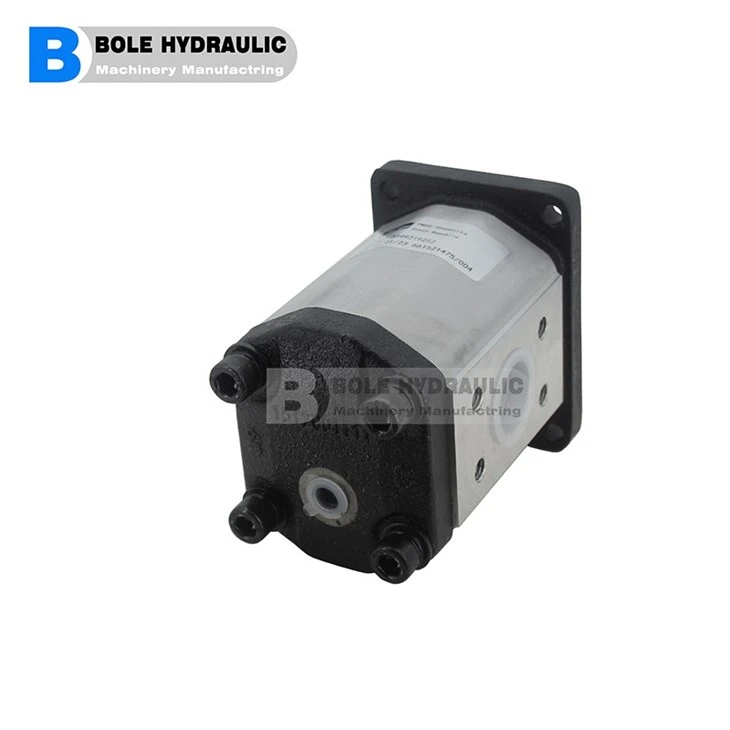

Pam Gear Minyak GHD 2 Jihostroj
Pesaran dari 43 hingga 150 ccm tekanan sehingga 300 bar kelajuan dari 350 hingga 3200 rpm ghd 2-51 ghd 2-56 ghd 2-61 ghd 2-71 ghd 2-82 ghd {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {} {}} 10}} ghd 2-100 ghd 2-110 ghd 2-125 ghd 2-150
|
Nominal Saiz Parameter |
Sym. |
Unit |
GHD2 51 |
GHD2 56 |
GHD2 61 |
GHD2 71 |
GHD2 82 |
|
|
Anjakan sebenar |
Vg |
[cm3] |
51.81 |
56.52 |
61.23 |
71.83 |
82.43 |
|
|
Kelajuan putaran |
nominal |
nn |
[min -1] |
1500 |
1500 |
1500 |
1500 |
1500 |
|
minimum |
nmin |
[min -1] |
400 |
400 |
400 |
400 |
400 |
|
|
maksimum |
nmax |
[min -1] |
3200 |
3200 |
3200 |
3200 |
3000 |
|
|
Tekanan di Inlet* |
minimum |
p1min |
[Bar] |
-0.3 |
-0.3 |
-0.3 |
-0.3 |
-0.3 |
|
maksimum |
p1max |
[Bar] |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Tekanan di outlet ** |
maks. berterusan |
p2n |
[Bar] |
280 |
280 |
270 |
260 |
260 |
|
maksimum |
p2max |
[Bar] |
300 |
300 |
290 |
280 |
280 |
|
|
puncak |
p3 |
[Bar] |
310 |
310 |
300 |
290 |
290 |
|
|
Kadar aliran nominal (min.) Di NN dan P2N |
Qn |
[dm3 .min -1] |
69.9 |
76.3 |
82.7 |
99.1 |
116.2 |
|
|
Kadar aliran maksimum di Nmax A p2max |
Qmax |
[dm3 .min -1] |
162.5 |
177.2 |
192.0 |
225.3 |
242.3 |
|
|
Kuasa Input Nominal (Max.) Di NN dan P2N |
Pn |
[kw] |
44.8 |
48.8 |
51.0 |
56.4 |
63.3 |
|
|
Kuasa input maksimum di Nmax A P2Max |
Pmax |
[kw] |
94.0 |
102.5 |
107.4 |
121.6 |
130.8 |
|
|
Berat |
m |
[kg] |
– |
– |
– |
– |
– |
|
|
Nominal Saiz Parameter |
Sym. |
Unit |
GHD2 90 |
GHD2 100 |
GHD2 110 |
GHD2 125 |
GHD2 150 |
|
|
Anjakan sebenar |
Vg |
[cm3] |
90.67 |
100.09 |
110.69 |
125.99 |
150.72 |
|
|
Kelajuan putaran |
nominal |
nn |
[min -1] |
1500 |
1500 |
1500 |
1500 |
1500 |
|
minimum |
nmin |
[min -1] |
400 |
350 |
350 |
250 |
250 |
|
|
maksimum |
nmax |
[min -1] |
2800 |
2700 |
2600 |
2400 |
2000 |
|
|
Tekanan di Inlet* |
minimum |
p1min |
[Bar] |
-0.3 |
-0.3 |
-0.3 |
-0.3 |
-0.3 |
|
maksimum |
p1max |
[Bar] |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Tekanan di outlet ** |
maks. berterusan |
p2n |
[Bar] |
240 |
230 |
210 |
190 |
170 |
|
maksimum |
p2max |
[Bar] |
260 |
250 |
230 |
210 |
190 |
|
|
puncak |
p3 |
[Bar] |
270 |
260 |
240 |
220 |
200 |
|
|
Kadar aliran nominal (min.) Di NN dan P2N |
Qn |
[dm3 .min -1] |
127.8 |
141.1 |
156.1 |
177.6 |
212.5 |
|
|
Kadar aliran maksimum di Nmax A p2max |
Qmax |
[dm3 .min -1] |
248.8 |
264.8 |
282.0 |
296.3 |
295.4 |
|
|
Kuasa Input Nominal (Max.) Di NN dan P2N |
Pn |
[kw] |
64.3 |
68.0 |
68.7 |
70.7 |
75.7 |
|
|
Kuasa input maksimum di Nmax A P2Max |
Pmax |
[kw] |
124.7 |
127.7 |
125.1 |
120.0 |
108.2 |
|
|
Berat |
m |
[kg] |
– |
– |
– |
– |
– |
|
